【型號及規格參數】

型號	平板吊袋離心機					分離因素（w2r/g）	電機功率	整機重量	外形尺寸
	直徑	高度	工作容積（L）	裝料限量	轉速（r/min）
PD800	800	420	120	160	1300	820	7.5	2000	1700*1250*1300（2100）
PD1000	1000	460	180	200	1200	800	11	2400	2000*1500*1400（2450）
PD1250	1250	520	420	480	1050	740	18.5	3500	2300*1800*1480（2750）
PD1600	1600	850	900	1000	1050	720	37	8500	3000*2200*1950（3800）


【主要特點】
本機是一種立式上部卸料、間歇作業的過濾離心機。適合干分離含固顆粒≥0.01毫米的懸浮液。配置全密閉可開式機蓋、平板機座、變頻調速?？梢猿绦蚩刂坪瓦h(yuǎn)、近距離控制。具有結構新穎、操作簡單、運轉平穩、全密閉防爆、潔凈度高、勞動強度低、符合GMP標準等特點。


【主要用途】
廣泛適用于化工、制藥、食品、輕工等行業。特別適合環境潔凈度要求高，有GMP要求的制藥、食品、保健品行業。
如：石膏，硫酸銅，氯化鉀，硼砂，燃料，動植物提取液，農藥藥劑，食鹽，味精，食品添加劑，淀粉，帛糖，化學調味料，抗生素，維生素，銅、鋅、鋁等礦產物、金屬精制，污泥處理，污水處理等。

【工作原理】

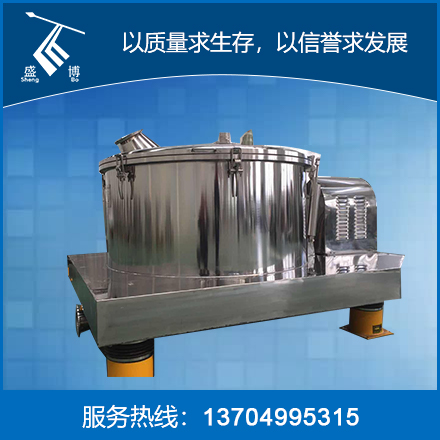

平板式吊袋上部卸料離心機主要有底座、傳動結構、轉鼓、機殼、機蓋、開蓋機構、加料管、電機、減震器等組成。
它是依照制藥裝備GMP規范設計制作的機型。
電機帶動轉鼓旋轉，達到進料轉速時物料由進料管引入轉鼓，進料達到預定容積后停止加料并升至高速分離，此時可進行洗滌。在進料和高速分離過程中，由于離心力的作用，液相物經過過濾介質和轉鼓壁上的孔被甩到機殼的內壁上，匯集后由出液口排出，而固相則留在轉鼓內，從而完成離心過濾的分離過程。

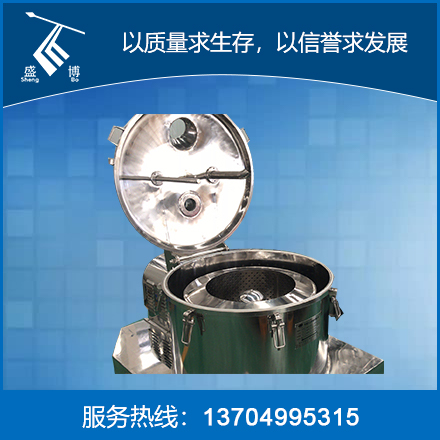

離心機停止運轉后打開機殼，拔出擋料板定位銷，用起吊機構（手動或電動葫蘆）吊出固相物料并移到指定地點卸料。

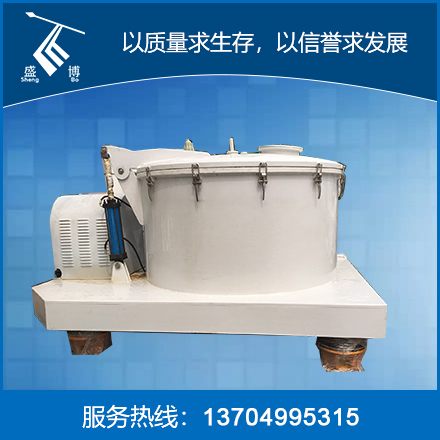

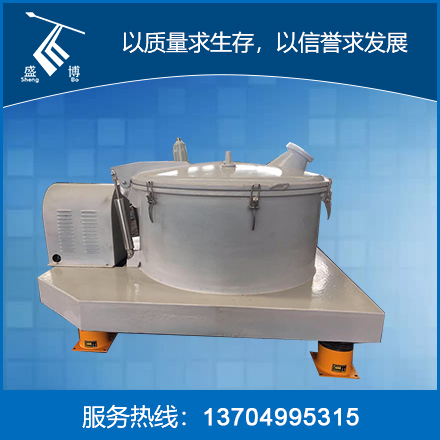

除用途廣泛的潔凈型以外，可根據企業需求定制碳鋼型，襯塑型，襯PE型，鈦材型平板式離心機。


【Specification】

Model	Flat plate hanging bag centrifuge					Separation factor（w2r/g）	Motor power（kw）	Overall weight（kg）	External dimensions（mm）
	Diameter（mm）	Height（mm）	Bowl Volume（L）	Loading limit（kg）	Speed（r/min）
PD800	800	420	120	160	1300	820	7.5	2000	1700*1250*1300（2100）
PD1000	1000	460	180	200	1200	800	11	2400	2000*1500*1400（2450）
PD1250	1250	520	420	480	1050	740	18.5	3500	2300*1800*1480（2750）
PD1600	1600	850	900	1000	1050	720	37	8500	3000*2200*1950（3800）


【Characteristics】
This machine is a vertical upper discharge and intermittent operation filtering centrifuge.  Suitable for dry separation of suspensions containing solid particles ≥ 0.01mm.  Equipped with fully sealed openable machine cover, flat machine base, frequency conversion speed regulation.  It can be controlled by program and by far and near distance.  It has the characteristics of novel structure, simple operation, stable operation, full airtight explosion prevention, high cleanliness, low labor intensity, compliance with GMP standards, etc.

【Applications】
Widely applicable to chemical, pharmaceutical, food, light industry and other industries.  It is especially suitable for pharmaceutical, food and health care industry with high environmental cleanliness requirements and GMP requirements.
Such as gypsum, copper sulfate, potassium chloride, borax, fuel, animal and plant extracts, pesticide agents, salt, monosodium glutamate, food additives, starch, sugar, chemical seasonings, antibiotics, vitamins, minerals such as copper, zinc, aluminum, metal refining, sludge treatment, sewage treatment, etc.


【Principle】
The upper discharge centrifuge of the flat-plate hanging bag mainly comprises a base, a transmission structure, a rotating drum, a casing, a machine cover, an opening mechanism, a feeding pipe, a motor, a shock absorber and the like.
It is designed and manufactured according to GMP standard for pharmaceutical equipment.
The motor drives the rotating drum to rotate, when the feeding speed is reached, the material is introduced into the rotating drum through the feeding pipe, and when the feeding reaches a predetermined volume, the feeding is stopped and lifted to high-speed separation, and washing can be performed at this time.  In the process of feeding and high-speed separation, due to the action of centrifugal force, liquid substances are thrown onto the inner wall of the casing through the filter medium and holes in the wall of the rotating drum, collected and discharged from the liquid outlet, while the solid phase remains in the rotating drum, thus completing the separation process of centrifugal filtration.
After the centrifuge stops running, open the casing, pull out the locating pin of the baffle plate, use the lifting mechanism (manual or electric hoist) to lift out the solid material and move it to the designated place for unloading.

In addition to the widely used clean type, carbon steel type, lining plastic type, PE type, titanium plate centrifuge can be customized according to the needs of enterprises.
