【型號及規格參數】
| 型號 |
生物型管式離心機 |
通水能力（t/h） |
電機功率 |
整機重量 |
外形尺寸 |
| 直徑 |
轉鼓容積（L） |
轉速（r/min） |
| GQ150 |
142 |
10 |
10000-14000 |
1.5 |
3 |
700 |
600*500*1670 |
| GQ125 |
125 |
8 |
9000-15000 |
1.3 |
3 |
600 |
600*500*1670 |
| GQ105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQX105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQ75 |
75 |
2.2 |
10000-20000 |
0.6 |
1.5 |
300 |
500*450*1200 |
【主要特點】
生物型分離機是管式分離機系列中的一種。它是專為生物制品行業設計的一種機型。
該機型針對生物制品粘度大、體積小、不易分離等特點，在原有通用型的基礎上加以改進，提高收益率、增加產量。
該機針對生物制品要求低溫生產的特點，可以設冷卻裝置，以滿足工藝要求。
在菌體分離工藝中，為保證菌體活性可采用逆止閥及轉鼓襯里裝置，以防止物料染菌。
【工作原理】
分離機由機身、傳動系統、轉鼓、集液系統、進液系統組成。
轉鼓上部與撓性主軸鏈接，底部是阻尼滑動軸承。
設備工作時轉鼓繞自身軸線高速旋轉，形成強大的離心力場。物料由底部進液系統的進液噴嘴射入，轉鼓內的離心力迫使料液沿轉鼓內壁向上流動，且因料液不同組成的密度差而分層。

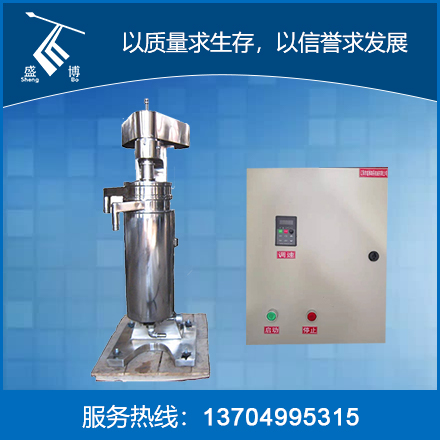

Biological tubular centrifuge
【Specification
】
| Model |
Biological tubular centrifuge |
Water supply capacity（t/h） |
Motor power（kw） |
Overall weight（kg） |
External dimensions（mm） |
| Diameter（mm） |
Bowl Volume（L） |
Speed（r/min） |
| GQ150 |
142 |
10 |
10000-14000 |
1.5 |
3 |
700 |
600*500*1670 |
| GQ125 |
125 |
8 |
9000-15000 |
1.3 |
3 |
600 |
600*500*1670 |
| GQ105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQX105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQ75 |
75 |
2.2 |
10000-20000 |
0.6 |
1.5 |
300 |
500*450*1200 |
【Characteristics】
Biological separator is one of the series of tubular separators. It is a model specially designed for biological products industry.
According to the characteristics of biological products such as large viscosity, small volume and difficult separation, this model is improved on the basis of the original universal model to increase the yield and increase the output.
According to the characteristics of biological products requiring low temperature production, the machine can be equipped with cooling devices to meet the technological requirements.
In the thallus separation process, a check valve and a drum lining device can be adopted to ensure thallus activity so as to prevent materials from being contaminated with bacteria.
【Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
When the equipment works, the rotating drum rotates at high speed around its own axis, forming a strong centrifugal force field. The material is injected from the liquid inlet nozzle of the bottom liquid inlet system, and the centrifugal force in the rotating drum forces the material liquid to flow upward along the inner wall of the rotating drum and delaminate due to the density difference of different composition of the material liquid.
